Nick Metallbau GmbH Hall 8 / F33

More than 40 years of expertise in metal and filtration.

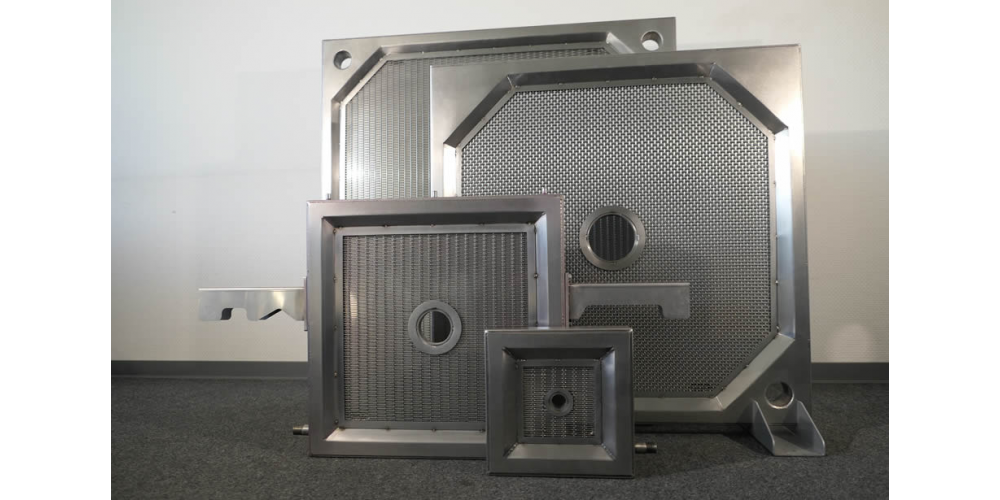

Nick combines development and problem-solving expertise, manufacturing quality and reliability. The result is a complete range of stainless-steel chamber filter plates in all standard sizes for pressure filtration, which begins where conventional polypropylene chamber are no longer technically sufficient.

The patented design of the “Made by Nick”® chamber plate enables a lightweight stainless-steel plate that is far superior compared to conventional polypropylene plates in terms of chemical, mechanical and thermal stability. The plates are available in both open and closed designs. A range of stainless steels can be used as construction materials, such as DIN 1.4301 (AISI 304) but also high-alloy stainless steels such as DIN 1.4539 (AISI 904L). The lightweight stainless-steel plate also replaces chamber filter plates made out of cast iron. It can be used as original equipment or for replacement in existing filter systems/presses in operation. This is often accompanied by capacity increases due to optimized design and up to 30% lower pressure loss compared to polypropylene filter plates. Moreover, our chamber filter plates can be optional temperature controlled from below 10° C up to above 100° C, ideally for Bio- and Food and Pharmaceutical processes, as well as for Hydrometallurgical applications. Same time, process pressure applied can be as high as 50 bar (g). All common woven filter media can be used, as well as sintered metal mesh. We are your expert partner, especially when it comes to special filtration requirements that cannot be solved using conventional approaches. Nick® supplies the necessary stainless steel process solutions as installed in modern filter presses.
